Enclosure System

x stream designs xcold outdoor climate controlled ptz camera enclosure se

Patented Design • Intelligent Tech • Extreme Heat Protection • Solid State Cooling Technology

X|COLD TECHNOLOGY

SELF-COOLED CAMERA HOUSINGS FOR EXTREME HEAT CONDITIONS

Protect your sensitive camera and surveillance equipment in high heat conditions in our self-cooled outdoor polycarbonate PTZ camera housings with proven solid state cooling technology. The X|Cold cooled camera housing is controlled by our X|Smart power distribution platform with integrated 4 port 10/100Mbps network switch, redundant circulation fans, 12VDC, 24VDC and PoE ports – all remotely controllable via the X|Smart web interface. Cooled Camera Housings are proven to extend the life of your heat-sensitive camera, NVR and other integrated components. Learn more about X Stream Designs cooled camera housings below!

Engineered For Extreme Heat Conditions

  • Built To Withstand Extreme Heat (Up to 160º F / 71º C)
  • Redundant Peltier-Based Thermoelectric Cooling
  • Non-Thermally-Conducive Polycarbonate Housing
  • F12 Open Cell Silicone Foam Insulation Provides Radiant Heat Shielding
  • Dual/Redundant Circulation Fans Eliminate Hot Spots

Comprehensive And Customizable

  • Integrated Network Switch With Four PoE+ Ports
  • Remotely Controllable Accessory Power Ports – [2] – 12VDC, [2] – 24VDC
  • Integrate NVRs, Encoders, Routers And More With Built-In Accessory Rails
  • Extended Volume (EV) Option Adds 520in3 Of Integration-Ready Space

Remotely Monitor And Control

  • Remotely Monitor And Control The Enclosure Via The Web Or API
  • Power On/Off – 12VDC, 24VDC, And PoE+ Ports
  • Monitor Internal And External Temperatures And Power Loads

Economical, Practical, Smart

  • Painless Installation With Standard Wall Mount Bracket Or Pole Mount Adapter
  • Nearly Indestructible Polycarbonate Construction – No Rust Or Corrosion
  • Efficient Solid State Cooling With 140 Watt Typical Power Load
  • Keeps Integrated Components Within Operating Temperatures In Extreme Heat

Integrate Virtually Any Camera

Compatible With Almost All Cameras With A Pan/Tilt Head Under 7 Inches in Diameter

30 Watt PoE+, 12VDC and 24 VDC Web Enabled Accessory Power Port

Experience The Extreme Heat Protection

Build Your Enclosure

Hardware: Durable. Robust. Convenient.

Nearly indestructible Polycarbonate Enclosure

Redundant Cooling Modules

  • Dual Thermoelectric Cooling Assemblies Cool The Interior Without Exposing Electronics To Outside Air

Radiant Heat Shielding

  • Open cell silicone foam insulation

External Power Supply

  • 90-240VAC input protected by an integrated rain shield

Integrated Heat

  • 20 Watt Integrated Heat – Warms Enclosure (Optional 50W Upgrade)
  • Keeps Components Within Operating Temperatures
  • Combats Moisture and Condensation

Surge and EMI Protection

  • Protection against voltage spikes and electromagnetic interference

Polycarbonate Material

  • Non-Thermally Conducive
  • Durable, Protective Construction Will Not Rust Or Corrode

X|Smart System Tray

  • Versatile Power Options, Integrated Networking, Climate Control And Remote Control Via Web Interface

Versatile Camera Integration

  • Fits Almost All Cameras With A Pan/Tilt Head Under 7” in Diameter
  • Included Hex Standoffs For Easy Height Adjustment
  • Integrated Power Options: PoE+, 12VDC or 24VDC

Intuitive Integration

  • Easily Integrate NVRs, Routers, Encoders And Other Peripherals
  • Accessory Mounting Rails For Easy Installation

Intelligent Cable Ingress

  • Reduce The Risk Of Water Intrusion With Cable Entry From Below

Stainless Steel Latches

  • Secure The Enclosure While Resisting Rust And Corrosion
  • Safeguard Your Equipment With A Padlock (Optional)

Vertical Hinge

  • No-Fuss Access The Enclosure Interior For Maintenance and Component Integration

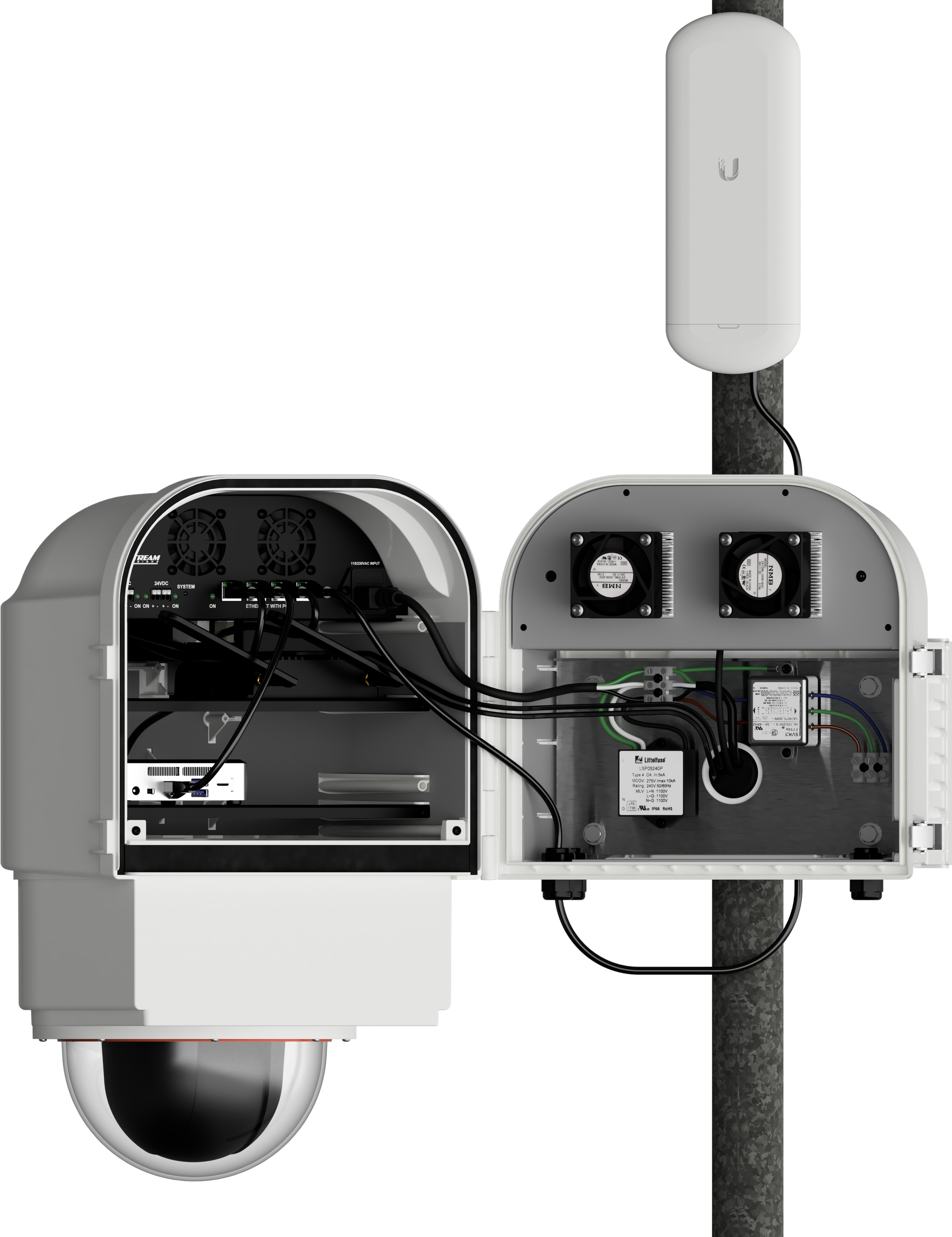

Extra Volume (EV) Enclosure Upgrade

With an additional 520 cubic inches of integration-ready volume, the X|Cold-EV model enclosure system exposes the accessory mounting rails with even the tallest cameras providing the extra room and flexibility to integrate camera-complementing accessories including NVRs, Routers, Network Switches, Encoders, Media Converters, Power Supplies and more.

  • Extended Volume Lower Camera Tray
  • 520 Cubic Inches Additional Integration Ready Volume
  • Exposes Accessory Mounting Rails Allowing for Up to Two Accessory Mounting Shelves

Simple And Secure Mounting

x stream designs xcold pole mount
  • Integrated External Power Supply Chassis Mounts Either To The Wall Or Pole Mount Bracket (With Integrated Leveling Plate)
  • Slide The Enclosure Onto The Bracket And Secure With A Padlock
  • Stylish White Powder Coated Aluminum And Stainless Steel Hardware Resists Rust

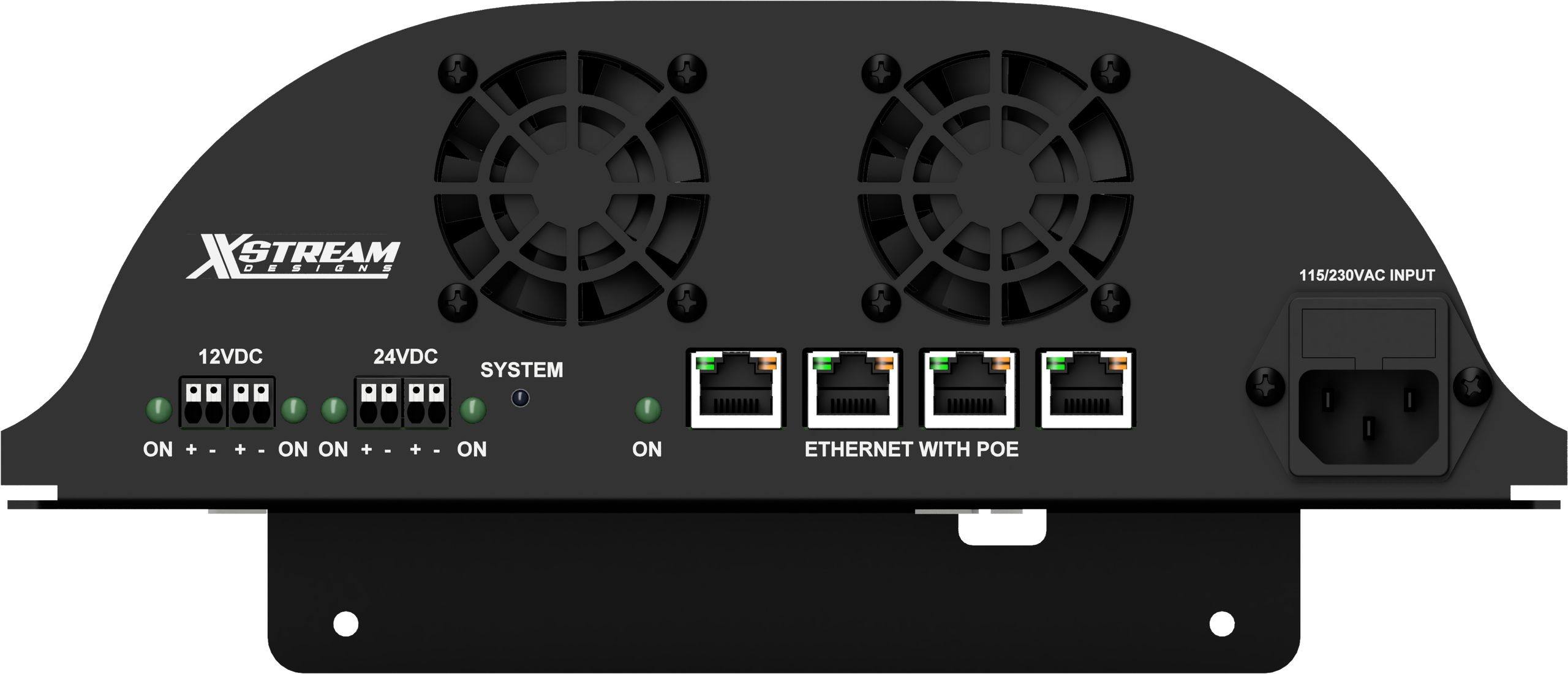

X|Smart System Tray

XSmart System Tray from XCold Model Enclosure
  • Dual Circulation Fans Provide Redundant Circulation of Cooled Air, Eliminating Hot Spots
  • Remotely Controlled Power Inputs:
    [2] 24 VDC Power Ports, [2] 12VDC Power Ports, [4] 30 Watt PoE+ Ethernet Ports
  • Integrated Networking:
    4 Port 10/100Mbps Ethernet Switch

Superior Air Circulation

x stream designs xcold outdoor climate controlled ptz camera enclosure air circulation animation
  • Redundant 6,000 RPM 9.9 CFM Circulation Fans Push And Pull Air Throughout The Entire Enclosure System
  • Protects Equipment By Eliminating Hot Spots
  • Keeps Sensitive Components Within Their Specified Operating Temperatures

User Interface:
Simple. Intuitive. Accessible.

control from anywhere

Intuitively Designed For The End User – Ensure Pristine Image Quality With The Click Of A Mouse

x stream designs xcold gui nographs

Auxiliary Power Controls

  • 30 Watt PoE+, 12VDC And 24VDC
  • Set Connected Devices To Power On Startup
  • Manually Power Devices On Or Off

Climate Controls

  • Control The Internal Heat Settings

At-A-Glance Information

  • See The Enclosure’s Local Date And Time
  • Review Power Status Of X|Accessories
  • Check Internal Temperature (Standard)
  • Check External Temperature With Optional X|EXT-TEMP Accessory
  • Review Current Power Input And Load

Power and Temperature Graphs

  • See Power Usage And Temperature Over Time

TAILOR YOUR CONTROL PANEL DISPLAY • CONFIGURE NETWORK AND POWER SETTINGS • REBOOT AND POWER CYCLE REMOTELY
  • Name Your Enclosure
  • Choose Which Information Is Displayed Based On Your Needs
  • Name Your Peripherals And Set Start-Up Power Options
  • Integrate The Camera Stream Directly Into The Web Interface
  • Customize Time, Date and Temperature Settings
  • Configure Network Settings
  • Review Power Usage and Temperature Graphs
  • Adjust Log In Credentials And Authentication Requirements
  • Reboot Or Shut Down The Enclosure System
  • Update System Firmware
  • All X|Accessories Are Seamlessly And Automatically Integrated Into The Web Interface

Specifications and Dimensions

Shipping Dimensions/Weight

  • X|COLD: 19”L x 15”W x 22” H – 26lbs
  • X|COLD-EV: 22”L x 16”W x 26”H – 29lbs

Input Source Power

  • 90-240VAC Input Power

Power Consumption

  • 20 Watts With Typical PTZ Camera (Cooling Off)
  • 140 Watts With Typical PTZ Camera (Cooling On)
  • 470 Watts Maximum Available Power

Remotely Controlled Aux Power Ports

  • [2] – 12VDC Ports
  • [2] – 24VDC Ports
  • [4] – IEEE 802.3at 30Watt PoE+ 10/100Mbps Ethernet Port

Enclosure Operating Temperatures

  • 0º to 160º F (-40º to 71º C)
    Operating Temperatures Of Integrated Cameras And Components May Vary

Remote Climate Control

  • 20 Watts Integrated Heat (Standard)
  • 50W Heating Capacity (Optional)

Enclosure Mounting

  • Wall Mount Bracket (Standard)
  • Pole Mount Bracket with Leveling Plate (Optional)

User Interface Requirements

  • Network Connection Required
  • Compatible With All Modern Browsers
    Internet Explorer Not Recommended
  • Full API Documentation

Standard Dimensions

Extended Volume Dimensions
